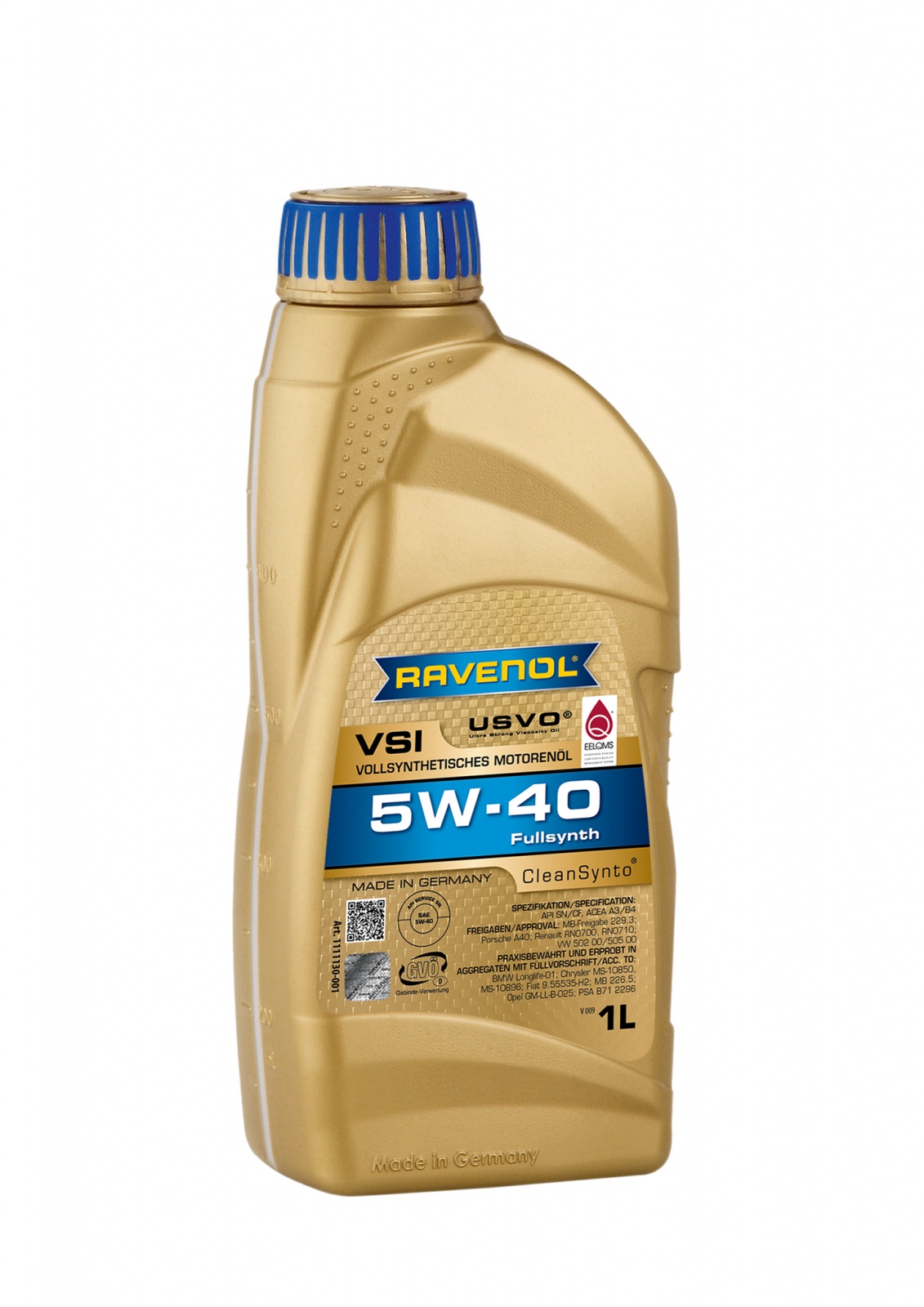

RAVENOL USVO VSI 5W-40 Engine Oil is a fully synthetic low-viscosity engine oil with unique USVO and CleanSynto technologies, which utilises the very latest additives to ensure a maximum fuel efficiency of both petrol and diesel engines. It has full OEM approval from Mercedes-Benz, Volkswagen, Porsche and Renault. The unique formulation guarantees excellent cold start characteristics and minimal oil consumption resulting from evaporation. Suitable for all driving conditions from stop-start city traffic to long distance, high speed motorway driving.
RAVENOL USVO VSI 5W-40 Engine Oil is suitable for the energy saving operation all the year of all modern cars with petrol and diesel engines and was specially developed for turbo chargers as well as catalysts.
Specifications:
- ACEA A3/B4, API CF, API SN Plus, API SP
OEM Approvals:
- API SN Plus
- API SP
- MB-Freigabe 229.3
- Porsche A40
- Renault RN0700/RN0710
- VW 502 00
- VW 505 00
Meets/ Exceeds Requirements:
- BMW Longlife-01
- Chrysler MS-10850
- Chrysler MS-10896
- Fiat 9.55535-H2
- MB 226.5
- Opel/GM-LL-B-025
- PSA B71 2296
Benefits of USVO® Technology:
• EXCELLENT HIGH TEMPERATURE VISCOSITY (HTHS AT 150 °C)
Barely any shearing loss during operation, which means that the lubricant film is permanently maintained during operation.
• EXCELLENT PERFORMANCE AT LOW TEMPERATURES (CCS AT -30 °C)
The lubricant is always able to flow so that direct engine lubrication is guaranteed even for cold starts.
• VERY GOOD OXIDATION STABILITY
Oxidation stable lubricants have increased resistance against reacting with oxygen and temperatures. This increases the lubricant service life, which permanently prevents deposits (sludge) and maintains the lubrication properties.
• VERY LOW LOSSES DUE TO EVAPORATION
Only a few components of the oil evaporate at the high operating temperatures. As a result, the engine oil level drops only slightly and the environment is not additionally polluted by the gases.
• HIGH VISCOSITY INDEX
a high viscosity index illustrates a weak temperature-dependent viscosity change compared to a low viscosity index.
• VERY LOW POUR POINT
The pour point is the lowest temperature above which an oil is liquid. As a result, lubrication is guaranteed, even at the lowest temperatures.
The interaction of the properties ensures that a thick protective film is formed during vehicle operation, which remains stable even under high thermal and mechanical stresses.
Characteristics:
RAVENOL USVO VSI 5W-40 Engine Oil offers:
- High abrasion resistance.
- Fuel saving because of easy running characteristics.
- Excellent detergent and dispersant characteristics.
- Prevention of black sludge creation.
- Long endurance because of high oxidation stability.
- Excellent cold start performance.
- Very good viscosity temperature behaviour.
- Low evaporation.
- Suitable for catalysts.
Technical Product Data
| Property | Unit | Data | Audit |
| Density at 20 °C | kg/m³ | 843,0 | EN ISO 12185 |
| Colour | | gelbbraun | VISUELL |
| Viscosity at 100 °C | mm²/s | 14,5 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 87,6 | DIN 51562-1 |
| Viscosity Index VI | | 172 | DIN ISO 2909 |
| HTHS Viscosity at 150 °C | mPa*s | 3,84 | ASTM D5481 |
| CCS Viscosity at -30 °C | mPa*s | 4220 | ASTM D5293 |
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 18.600 | ASTM D4684 |
| Pourpoint | °C | -51 | DIN ISO 3016 |
| Noack Volatility | % M/M | 6,9 | ASTM D5800 |
| Flashpoint | °C | 238 | DIN EN ISO 2592 |
| tbn | mg KOH/g | 10,0 | ASTM D2896 |
| Sulphated Ash | %wt. | 1,39 | DIN 51575 |
All indicated data are approximate values and are subject to the commercial fluctuations.
DOWNLOAD PDFSAFETY DATA SHEET
Please note that the technical data is correct at the time of writing, Ravenol are continuously updating product specifications. Therefore, please refer to the 'Download PDF' and 'Safety Data sheet' links above for up-to-date information.
Ravenol has made it their mission to master the technological challenges of the future of lubricants and have therefore developed the ultimate in automotive lubrication technology......USVO®
What is USVO® technology?
Lubricant requirements for modern vehicles are becoming increasingly demanding, with unwanted changes in viscosity quickly causing serious problems. To counter this, Ravenol has developed the USVO® lubricant technology to provide a very high viscosity stability at both high and low temperatures. To achieve this only the highest quality fully synthetic base oils and additives are used. USVO® stands for Ultra Strong Viscosity Oil.
THANKS TO THE IDEAL COMBINATION OF COMPONENTS, RAVENOL HAS CREATED FORMULATIONS WITH THE FOLLOWING BENEFITS:
• EXCELLENT HIGH TEMPERATURE VISCOSITY (HTHS AT 150 °C)Barely any viscosity loss during operation, which means that the lubricant film is permanently maintained during operation.
• EXCELLENT PERFORMANCE AT LOW TEMPERATURES (CCS AT -30 °C)The lubricant is always flows freely so that direct engine lubrication is guaranteed even for cold starts.
• VERY GOOD OXIDATION STABILITYOxidation stable lubricants have increased resistance against reacting with oxygen and temperatures. This increases the lubricant service life, which permanently prevents deposits (sludge) and maintains the lubrication properties.
• VERY LOW LOSSES DUE TO EVAPORATIONOnly a few components of the oil evaporate at the high operating temperatures. As a result, the engine oil level drops only slightly and the environment is not additionally polluted by the gases.
• HIGH VISCOSITY INDEXA high viscosity index illustrates a reduced temperature-dependent viscosity change compared to a low viscosity index.
• VERY LOW POUR POINTThe pour point is the lowest temperature above which an oil is liquid. As a result, lubrication is guaranteed, even at the lowest temperatures. Even if we never get temperatures this low in the UK, the lower the pour point, the better the quality of the lubricant.
• LESS FRICTION
A dramatic reduction in friction compared to conventional oils releases more power from your engine
| Properties of the RAVENOL-USVO® qualities
Thanks to their technical properties, RAVENOL USVO® lubricants optimise engine performance and noticeably reduce fuel consumption at the same time. This benefits the environment, as lower fuel consumption leads to reduced CO2 emissions.
CCS = Low temperature viscosity PP = Temperature of loss of fluidity MRV = Low temperature viscosity when pumping through SSI = Mechanical shear strength

Further detailed information over RAVENOL USVO® Technology can be found HERE. | |
