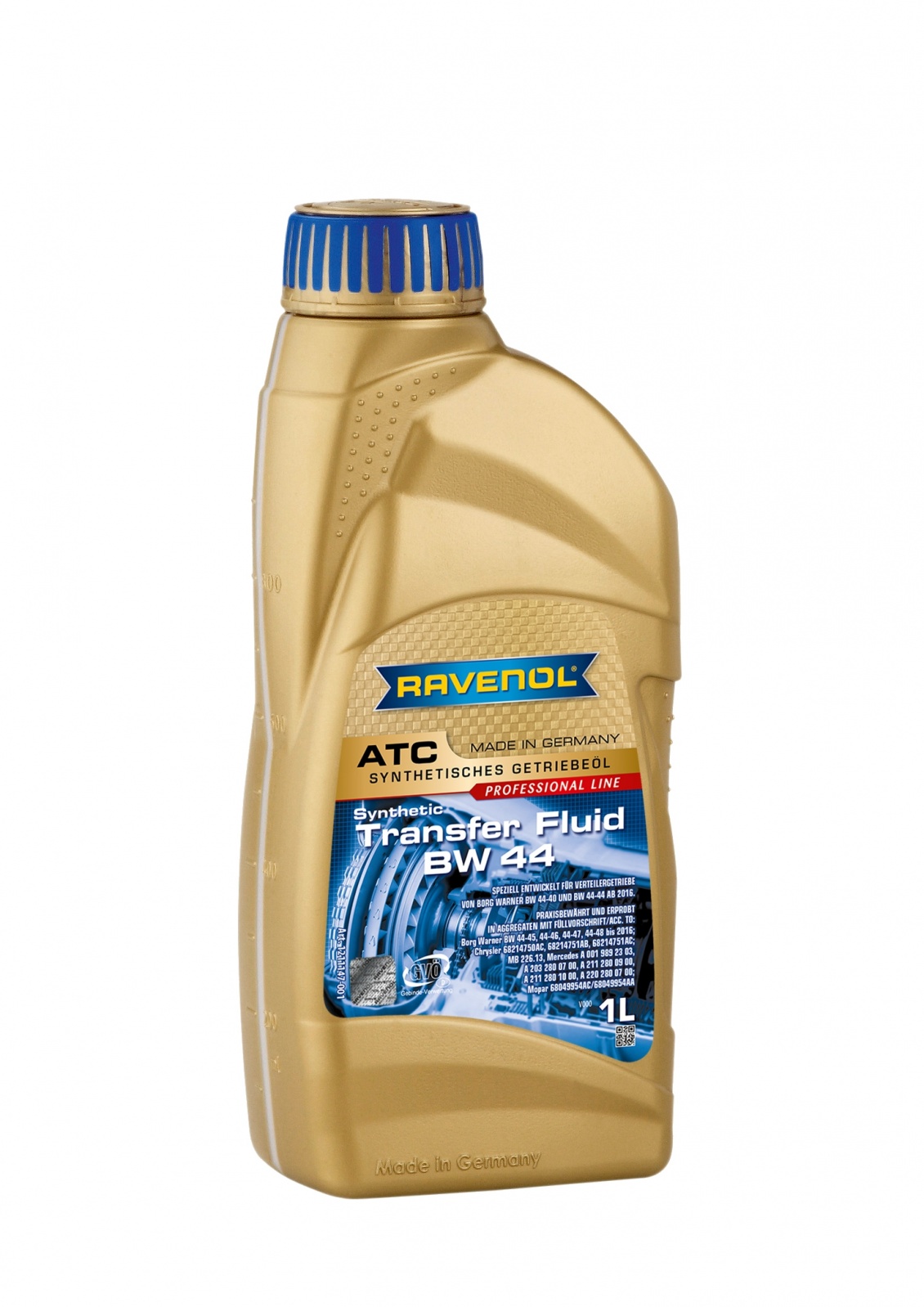

RAVENOL Transfer Fluid BW 44 is a PAO (Poly-alpha-olefin) based, fully synthetic transfer fluid with a special additives and inhibitors to ensure the proper functioning of electronically controlled active transfer cases.
RAVENOL Transfer Fluid BW 44 is a fully synthetic gear lubricant which ensures optimum power transmission..
Application Notes:
RAVENOL Transfer Fluid BW 44 was developed for use in for use in Borg-Warner transmission systems BW 44-40 and BW 44-44 from 2016.
RAVENOL Transfer Fluid BW 44 provides a stable viscosity even under the highest loads. It is particularly suitable when a specification according to MB 236.13 is required. Want to find out about Ravenol's Oil Analysis on this product? Click here.
Recommended:
- BorgWarner 44-40
- BorgWarner 44-44
- BorgWarner 44-45 up to 2016
- BorgWarner 44-46
- BorgWarner 44-47
- BorgWarner 44-48
- Chrysler 300C LX
- Chrysler Transfer Box 68214750AC
- Chrysler Transfer Box 68214751AB
- Chrysler Transfer Box 68214751AC
- MB 236.16 (A 001 989 23 03)
- Mercedes (A 001 989 22 03)
- Mercedes Transfer Box A2032800700
- Mercedes Transfer Box A2112800900
- Mercedes Transfer Box A2112801000
- Mercedes Transfer Box A2202800700
- Mopar 68049954AC
- Mopar 68049954AA
Characteristics:
- Very good lubricating ability even at very low temperatures in winter
- A high, stable viscosity index
- Very good oxidation stability
- Protection against wear, corrosion and foam formation
- Good balanced coefficient of friction
- Neutral towards sealing materials
- Neutral behavior by inhibition compared with non-ferrous metal
Technical Product Data
| Property | Unit | Data | Audit |
| Density at 20 °C | kg/m³ | 846,0 | EN ISO 12185 |
| Colour | | gelb | DIN 51757 |
| Viscosity at 100 °C | mm²/s | 7,2 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 37,2 | DIN 51562-1 |
| Viscosity Index VI | | 162 | DIN ISO 2909 |
| Brookfield Viscosity at -40 °C | mPa*s | 7900 | ASTM D2983 |
| Pourpoint | °C | -66 | DIN ISO 3016 |
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
| VKA Four Ball Test (Wear) | mm | 0,34 | DIN EN ISO 20623 |
| VKA Four Ball Test (EP Extreme Pressure) | N | 2200 / 2400 | DIN EN ISO 20623 |
| | mm²/s | 35,84 | DIN EN ISO 20844 |
| | mm²/s | 6,619 | DIN EN ISO 20844 |
| Copper Strip Test at 150 °C | | 1a | ASTM D130 |
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
| Noack Volatility | % M/M | 6,9 | ASTM D5800 |
Please note that the technical data is correct at the time of writing, Ravenol are continuously updating product specifications. Therefore, please refer to the 'Download PDF' and 'Safety Data sheet' links above for up-to-date information.
