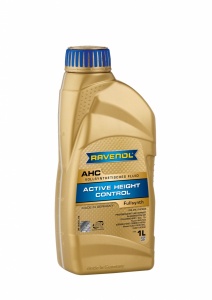

RAVENOL AHC Active Height Control Fluid - 1 Litre

(Inc. 20% VAT)
(£14.54 Exc. VAT)
Earn 17 Loyalty Points
16 in stock

Buy 4 or more of this product for a 7% discount


RAVENOL AHC Active Height Control Fluid is a fully synthetic hydraulic fluid based on PAO (Poly-alpha-olefin) and Ester and is used as a suspension fluid for active height control systems (AHC) for vehicles from Toyota and Lexus as well as for HBMC systems (Hydraulic Body Motion Control) from Nissan and Infiniti.

Application Notes

RAVENOL AHC Active Height Control Fluid was specifically developed for vehicles from Toyota, Lexus, Nissan and Infiniti that are equipped with an active height control system. This system was designed not only to change the position of the suspension system, but also to give the car a special softness. The AHC system holds approx. 4.5 liters. The fluid should be changed approx. every 60,000 miles or according to the manufacturer's instructions. Want to know about the Oil Test Analysis which Ravenol tested in their laboratory? Click here.

RAVENOL AHC Active Height Control Fluid is suitable for use in the following vehicles: Toyota Land Cruiser 100 and 200, Lexus LX470 and LX570, Nissan Patrol, Infiniti QX.

Warning: Never use brake fluid instead of RAVENOL AHC Active Height Control Fluid. This can cause the polymer seals in the system to perish.


  • Nissan KLG01-00501EU
  • Nissan KLG01-00502
  • Toyota AHC-Fluid 08886-01805
  • Toyota AHC-Fluid 08886-81260


RAVENOL AHC Active Height Control Fluid offers:

  • a high performance level
  • a very good viscosity temperature behaviour
  • a high aging resistant
  • an excellent corrosion protection
  • a solid corrosion protection
  • neutral towards sealing materials
Data Sheets

Technical Product Data

Property Unit Data Audit
Viscosity at 100 °C mm²/s 2,85 DIN 51562-1
Viscosity at 40 °C mm²/s 10,28 DIN 51562-1
Viscosity Index VI   132 DIN ISO 2909
Pourpoint °Celsius -60 DIN ISO 3016
Colour   hellrot VISUELL
Seq. I at 24 °C   0/0 ASTM D892
Seq. II at 93,5 °C   0/0 ASTM D892
Seq. III at 24 °C after 93,5 °C   0/0 ASTM D892
tbn   2,38 DIN ISO 2909
VKA Four Ball Test (Wear) mm 0,45 ASTM D2896
  mm²/s 10,28 DIN EN ISO 20623
  mm²/s 2,85 DIN EN ISO 20623
Copper Strip Test at 150 °C   1a ASTM D130
Flashpoint °Celsius 195 DIN EN ISO 2592

All indicated data are approximate values and are subject to the commercial fluctuations.


Please note that the technical data is correct at the time of writing, Ravenol are continuously updating product specifications. Therefore, please refer to the 'Download PDF' and 'Safety Data sheet' links above for up-to-date information.
