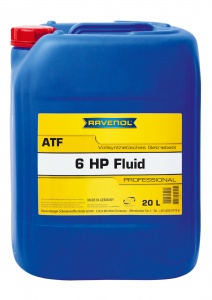

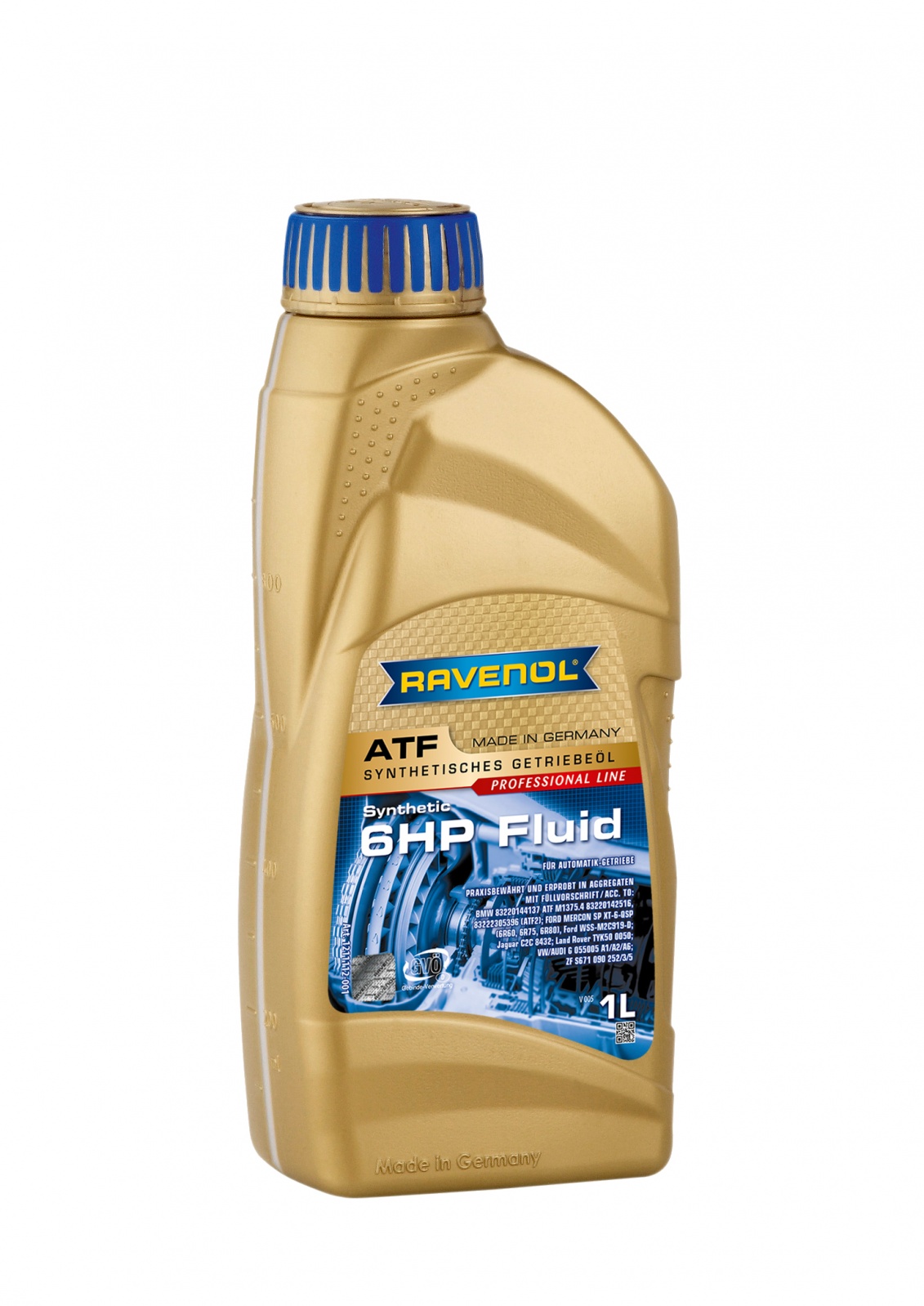

RAVENOL ATF 6HP Transmission Fluid is a synthetic automatic transmission fluid (ATF) produced by blending hydrocrack oils and synthetic PAO with special additives and inhibitors to ensure smooth and reliable operation of ZF high performance automatic transmissions requiring this specification.
BEWARE OF CHEAP IMITATIONS! There are a number of companies offering what they claim to be a 6HP Fluid which is in many cases nothing more than a rebranded Dexron III. The use of such a product can lead to malfunctioning of your Gearbox. If you are offered a product that is red in colour, it is not a genuine 6HP Fluid - RAVENOL ATF 6HP Transmission Fluid has a yellow-brown colour.
Application
RAVENOL ATF 6 HP Transmission Fluid was developed specifically for use in the latest ZF 6HP-series transmissions, 6HP19, 6HP21, 6HP26, 6HP28, 6HP32, 6HP34, also for 5-speed automatic transmission 5HP-series. It is backwardly compatible for all earlier versions of ZF 4- and 5-speed passenger car automatic transmissions, except 6HP26A61 in vehicles with Audi W12 (VW G055162A2) and 6HP19X for Audi Q7, 6HP19A, 6HP28AF (VW G060162A2). For these specifications we recommend RAVENOL ATF 8HP Fluid.
Meets/ Exceeds Requirements
- ATF M 1375.4
- BMW 83220144137
- BMW 83220142516
- BMW 83222305396 (ATF2)
- Ford MERCON SP XT-6-QSP (6R60 6R75 6R80)
- Ford WSSM2C919-D
- Jaguar C2C 8432
- Land Rover TYK500050
- VW/Audi G 055 005 A1
- VW/Audi G 055 005 A2
- VW/Audi G 055 005 A6
- ZF S671 090 252
- ZF S671 090 253
- ZF S671 090 255
Characteristics
RAVENOL ATF 6 HP Transmission Fluid offers:
- Very good lubricating ability even at low temperatures
- High, stable viscosity index
- Very low pour point
- Exceptional protection against corrosion and foam formation
- Good balanced coefficient of friction
- Compatible with all types of sealing materials
- High thermal and oxidation stability
- Excellent cooling abilities
- Excellent shear stability
- Lowest evaporation losses
- Compatible with all non ferrous components
| Characteristics | Unit | Data | Audit |
| Density at 20°C | kg/m³ | 835.0 | EN ISO 12185 |
| Colour | | yellow brown | visual |
| Pourpoint | °C | -54 | DIN ISO 3016 |
All indicated data are approximate values and are subject to commercial fluctuations.
