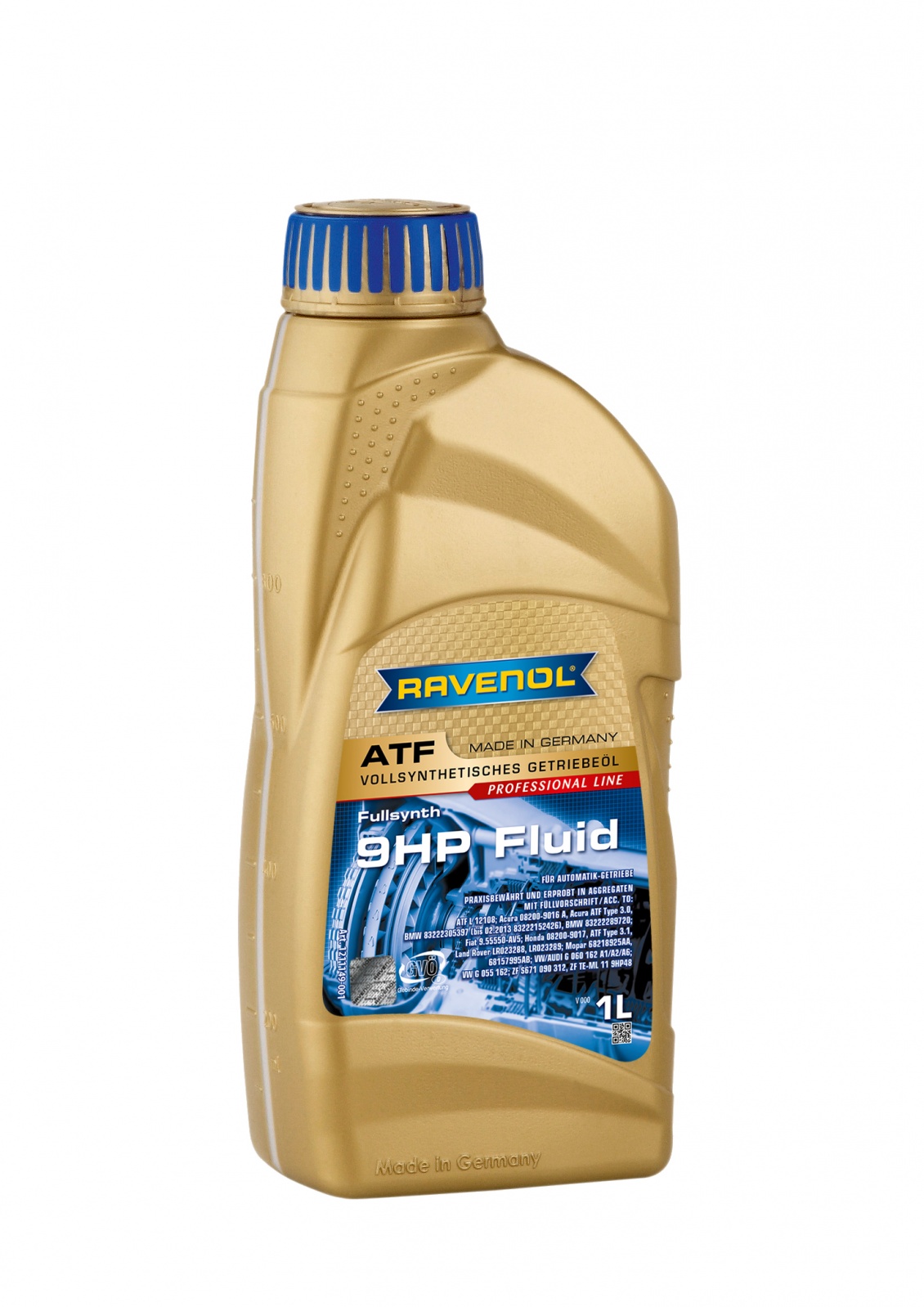

RAVENOL ATF 9HP Fluid is an automatic transmission fluid (ATF) specifically designed  for use in the latest generation of ZF 9-Speed Automatic Transmissions. It guarantees maximum wear protection in any operating condition. This is a fully synthetic ATF (Automatic Transmission Fluid), developed using PAO (Poly-alpha-olefin) blended with special additives and inhibitors to ensure correct functioning  of the automatic transmission.

RAVENOL ATF 9HP Fluid is green coloured.

Application Notes

RAVENOL ATF 9HP Fluid is suitable for use in automatic ZF transmission from the 9HP-Series, such as 9HP48.
Please observe OEM Part Numbers and their regulations!


  • Acura 08200-9016A
  • Acura ATF Type 3.0
  • ATF L 12108
  • ATF Type 3.1
  • BMW 83222167720
  • BMW 83222305397 (83222152426)
  • Fiat 9.55550-AV5
  • Honda 08200-9170
  • Land Rover LR023288
  • Land Rover LR023289
  • Mopar 68157995AB
  • Mopar 68218925AA
  • VW/AUDI G 055 162
  • VW/AUDI G 060 162 A1
  • VW/AUDI G 060 162 A2
  • VW/AUDI G 060 162 A6
  • ZF S671 090 312
  • ZF TE-ML 11 9HP48


RAVENOL ATF 9HP Fluid offers:

  • Very good lubricating ability even at low temperatures in winter
  • A high, stable viscosity index
  • Very good oxidation stability
  • Protection against wear, corrosion and foam formation
  • Good balanced coefficient of friction
  • A high thermal and oxidative stability
  • An excellent cooling capacity
Customer Reviews (0)

Be the first to Write a Review for this item!


paypal secured payment

Payment can be made either by PayPal or by Credit / Debit Card using the secure PayPal checkout. We take VISA, Mastercard and Maestro. Unlike some Online Shops we do not charge extra for Credit Card payments.

Pay in 3

Make one payment today, then pay the rest in two interest-free monthly payments. Available on purchases from £30 to £2,000. Apply easily through PayPal using the link in the Shopping Basket and get an instant decision.

ATTENTION TRADE CUSTOMERS: In addition to the above payment methods, and subject to credit references, we may be able to offer you a 30 day account. You can apply for a Trade Account HERE - once approved you will receive your own personal access code which allows you to see your net purchase prices and choose payment against invoice. You can of course also order by phone or by mail if you prefer.



Note that as a result of restrictions in force regarding the coronavirus and resulting staff shortages we can no longer guarantee a next day delivery service. Our shipping days are Mondays, Wednesdays and Fridays and orders received before 11.00am on those days will normally be sent straight out. Orders received after 11.00am and on Tuesdays and Thursdays will leave the next shipping day. Due to the increased documentation created by BREXIT we are currently unable to ship out orders to Mainland Europe or the Republic of Ireland.

Delivery Charges to Mainland UK ex. Highlands:

For deliveries within Mainland UK we have an Express delivery (1-2 working days on orders received before 9.00am) for £6.75 for orders under £90.00 in product value (including packaging and VAT), based on a single delivery address per order. ORDERS OVER £90.00 IN PRODUCT VALUE WILL BE DELIVERED FREE OF CHARGE! This offer applies only to deliveries to Mainland UK and is not valid for deliveries to Scottish Highlands, offshore islands and Northern Ireland. You will receive an e-mail with tracking details once the order has ben shipped.
Mainland UK Express delivery does not include the Highlands and Islands of Scotland (as defined by DHL), Northern Ireland, Isle of Man and Isles of Scilly - in case of uncertainty please just type your postcode into the box provided in the Shopping Basket.

Economy delivery via Royal Mail:
Due to insufficient staffing and resultant long delays at our local post office we no longer find it economical to offer this service and apologise for any inconvenience this may cause.

Highlands of Scotland:

We offer an Express 2-3 working day service to most areas for orders received before 10 a.m. Monday - Friday. Please choose the option "Scottish Highlands - DHL" or "Northern Ireland" in the Shopping Basket and the carriage charge based on the size of your order will be shown.

Isle of Man, Scottish Islands

We offer an Express 2-3 working day service to most areas for orders received before 10 a.m. Monday - Friday. Please choose the option "Isle of Man - DHL" in the Shopping Basket and the carriage charge based on the size of your order will be shown.

Isles of Scilly, Isle of White:

We offer an Express 2-3 working day service for most areas on orders. Please select "Isles of Scilly" or "Isle of White" in the Shopping Basket and the carriage charge and the carriage charge based on the size of your order will be shown.

Northern Ireland:

Brexit is making life almost impossible and now DHL Parcels are insisting we register for extra customs clearance documentation which we are just not geared up for. Unfortunately this means we currently cannot supply our friends in Northern Ireland.

Channel Islands:

We are now able to ship directly to Guernsey and Jersey via DHL. Please select "Guernsey" or "Jersey" in the Shopping Basket and the carriage charge based on the size of your order will be shown. Note that once you select your choice of country in the basket the items will be zero rated for VAT purposes.


Please include your mobile phone number when checking out so that you automatically receive an SMS from DHL Parcels UK confirming that the goods have been collected from our warehouse and informing you of the expected delivery date and one-hour slot. All deliveries sent with DHL Parcels are supplied on a signature required service. If you have asked for the parcel to left in a safe place, we will convey this instruction to the courier but cannot guarantee this will be done as the service is a POD service and items left without signature are at the discretion of the driver. Please note that DHL Parcels may use sub-contract transport companies - we cannot therefor guarantee that specific instructions, especially requests for the driver to call beforehand, will be carried out. Please bear in mind that these drivers often have a hundred or more deliveries to make in one day!

If the customer requests delivery to be left in a 'safe place' we cannot be held responsible for loss.

Carriage / Packing charges are subsidised and do not even cover our own net costs - we do not make a profit on carriage!  If you have any queries regarding our carriage charges or delivery to an address, please contact us. Please be aware weights shown on products are approximate and shown only as a guide to the total weight of your order.


Technical Product Data

Property Unit Data Audit
Density at 20 °C 840 kg/m³ EN ISO 12185
Colour Green   VISUELL
Viscosity at 100 °C 5,5 mm²/s DIN 51562-1
Viscosity at 40 °C 26,0 mm²/s DIN 51562-1
Viscosity Index VI 160   DIN ISO 2909
Brookfield Viscosity at -40 °C 5400 mPa*s ASTM D2983
Pourpoint -54 °C DIN ISO 3016
Copper Strip Test at 121 °C 1a   ASTM D130
Flashpoint 208 °C DIN EN ISO 2592
