NEW

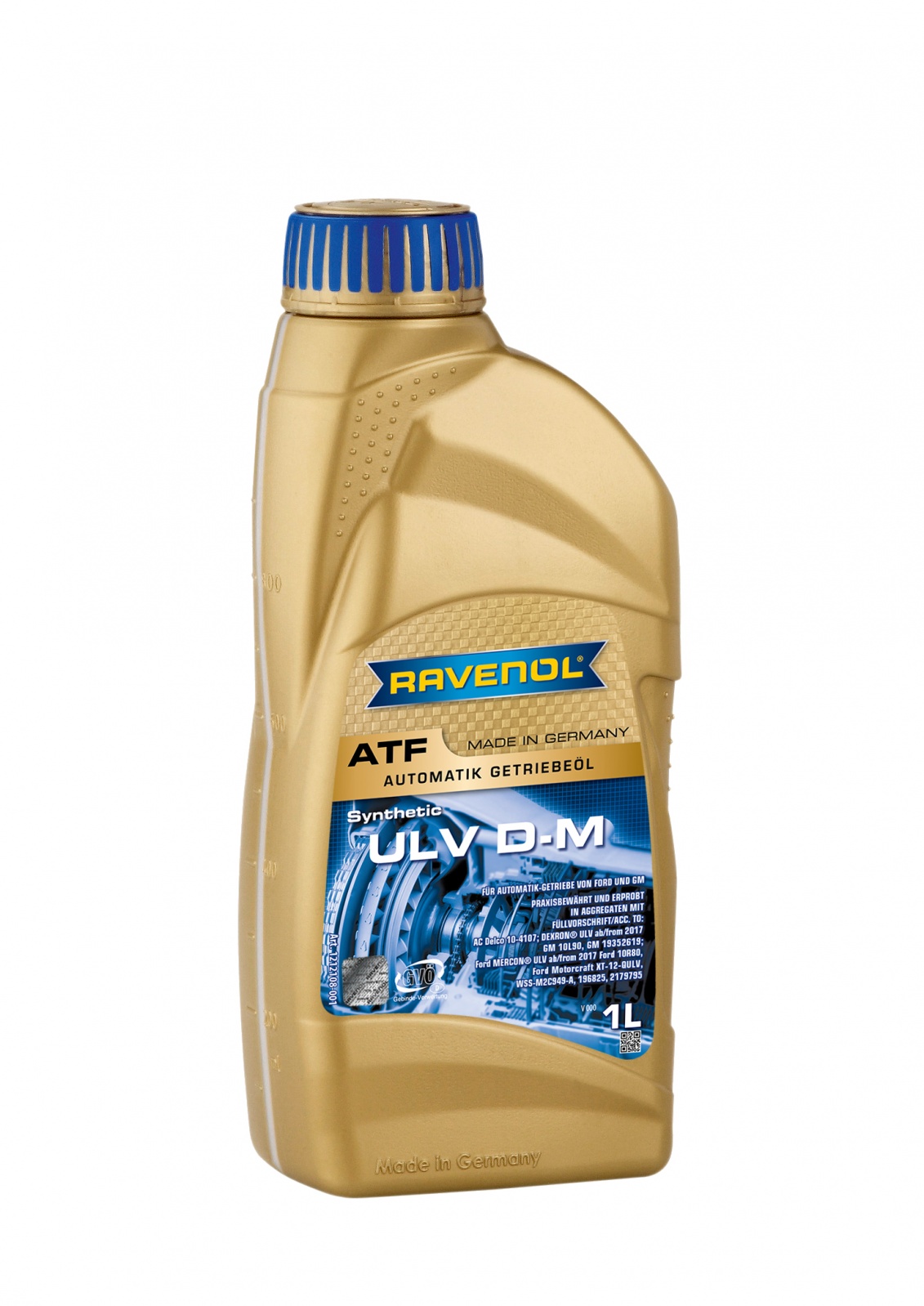

RAVENOL ATF ULV D-M Transmission Fluid - 1 Litre

£12.99
(Inc. 20% VAT)
(£10.83 Exc. VAT)
Earn 12 Loyalty Points
OUT OF STOCK - EXPECTED END OF APRIL
+
Reference
1212108-001-01-1JB1
Brand

Buy 4 or more of this product for a 7% discount

Information

RAVENOL ATF ULV D-M is an Ultra Low Viscosity (ULV) Automatic Transmission Fluid (ATF), designed on the basis of PAO (Polyalphaolefin), Ester and high quality hydrocrack oils with a special additive and inhibition, developed for the latest 6, 8 and 10 speed automatic transmissions from Ford and GM. It guarantees maximum wear protection in all operating conditions and offers reduced fuel consumption.

Application:

RAVENOL ATF ULV D-M was developed for use in 6, 8 and 10 speed automatic transmissions, especially from Ford and GM and is particularly suitable when the Ford WSS-M2C949-A specification is required.

It is recommended to flush with RAVENOL ATF ULV D-M before filling with RAVENOL ATF ULV D-M.

Particularly suitable for:

  • Ford 6-speed transmissions 6F15
  • Ford 8-speed automatic transmissions 8F24, 8F35, 8F40, 8F57
  • Ford 10-speed 10R60, 10R80-MHT, 10R80, 10R140
  • GM 10-speed 10L80 MF6, 10L90 MGL, 10L100 (Allison) MGM/MGU

Please observe the manufacturer's instructions and operating manual.

Meets/ Exceeds Requirements:
  • AC Delco 10-4107
  • DEXRON® ULV from 2017
  • Ford 196825
  • Ford 2179795
  • Ford MERCON® ULV from 2017
  • Ford 10R80
  • Ford Motorcraft XT-12-QULV
  • Ford WSS-M2C949A
  • GM 10L90
  • GM 19352619
Characteristics
  • Very good lubricating properties also at low temperatures in winter
  • Protection of highly loaded gear components, thus extended service life
  • Very low flow point
  • Excellent oxidation stability
  • Protection against wear and corrosion
  • Well balanced friction properties



Data Sheets

Technical Product Data

Property Unit Data Audit
Density at 20 °C kg/m³ 836 EN ISO 12185
Colour   rot VISUELL
Viscosity at 100 °C mm²/s 4,4 DIN 51562-1
Viscosity at 40 °C mm²/s 18,6 DIN 51562-1
Viscosity Index VI   149 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 2970 ASTM D2983
Pourpoint °C -51 DIN ISO 3016

All indicated data are approximate values and are subject to the commercial fluctuations.

DOWNLOAD PDFSAFETY DATA SHEET

Please note that the technical data is correct at the time of writing, Ravenol are continuously updating product specifications. Therefore, please refer to the 'Download PDF' and 'Safety Data sheet' links above for up-to-date information.
