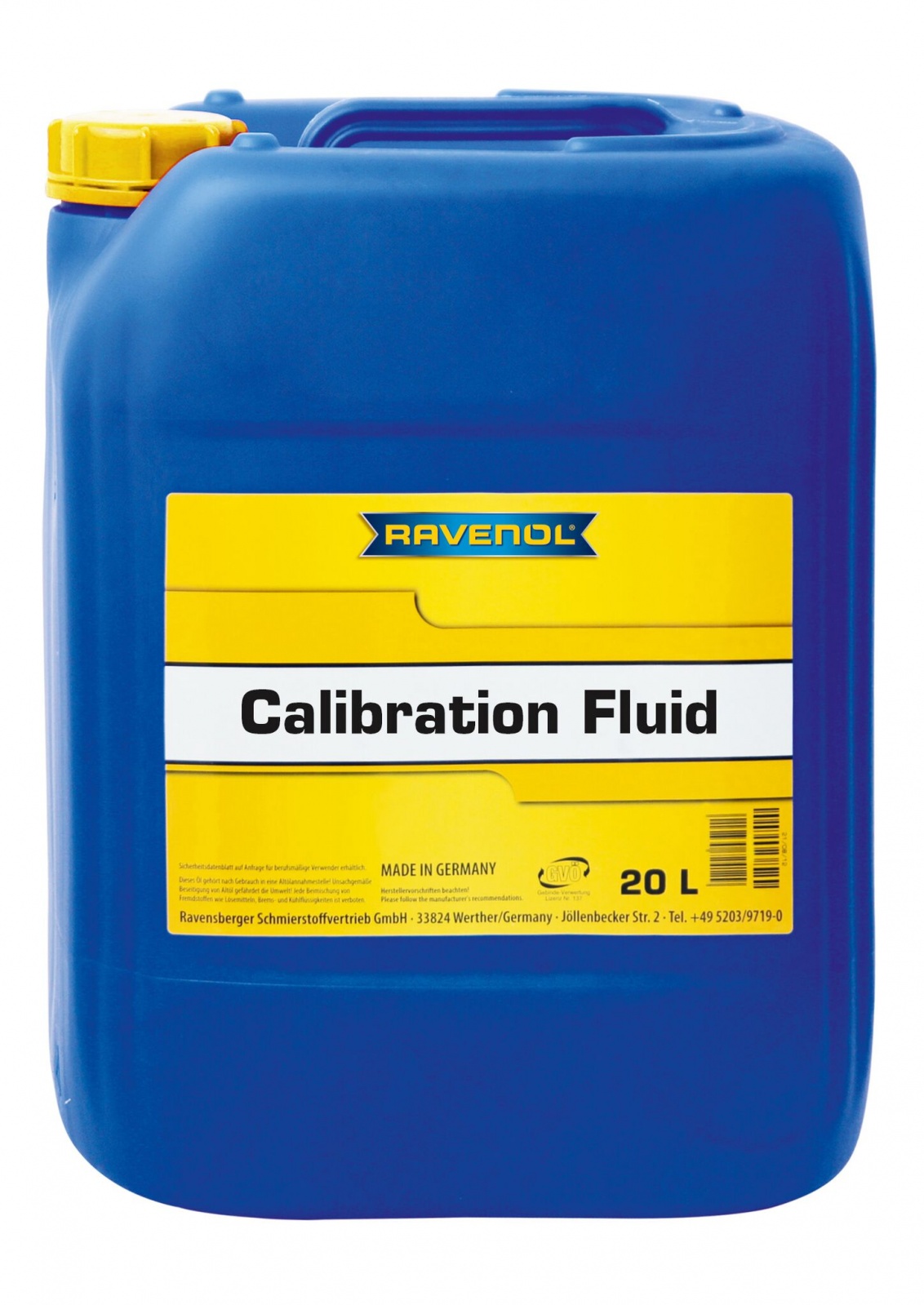

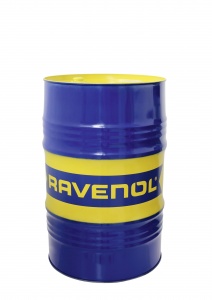

RAVENOL Calibration Fluid is a test fluid for the calibration of diesel injection pumps and as a corrosion preventive oil for the internal preservation of fuel systems. It is a low viscosity mineral oil prepared from solvent refined base stocks fortified with proprietary additives to produce a reference fluid for diesel injection testing equipment. It is suitable for all hand operated and power driven pump test stands and nozzle testing apparatus and is recommended for all pump efficiency tests and procedures including delivery volume output, pump element variation tests, nozzle pressure, output, and spray pattern tests.
Calibration fluids are simulated fuels that have the physical properties designed specifically to replicate diesel fuel. They are specially designed and formulated to meet the tight specifications demanded when calibrating, flowing and flushing fuel pumps and injectors. Smooth in texture, with high anti corrosion properties, our calibration fluid is ideally suited for use in nozzle testing systems and all types of hand operated and powered pump test stands and is an essential component in order to render accurate and consistent results in diesel injection test equipment. It is also extremely useful as a corrosion prevention oil for the internal preservation of fuel systems.
Specifications
ISO 4113, SAE J 967D
Recommended
- MB 133.0
- Bosch VS 15665-OL-CV
Characteristics
RAVENOL Calibration Fluid offers:
- Excellent wear protection
- Excellent corrosion protect
- Low tendency to foam
Characteristics | Unit | Data | Audit |
Density at 20°C | kg/m³ | 823 | EN ISO 12185 |
Colour | | light brown | visual |
Viscosity at 40°C | mm²/s | 2,53 | DIN 51 562 |
Pourpoint | °C | -39 | DIN ISO 3016 |
Flash point (COC) | °C | 120 | DIN ISO 2592 |
TBN base number | mg KOH/g | 0,1 | ASTM D2896 |
All indicated data are approximate values and are subject to commercial fluctuations.
