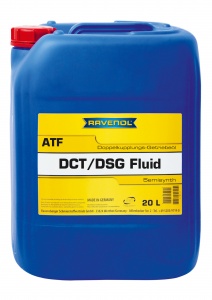

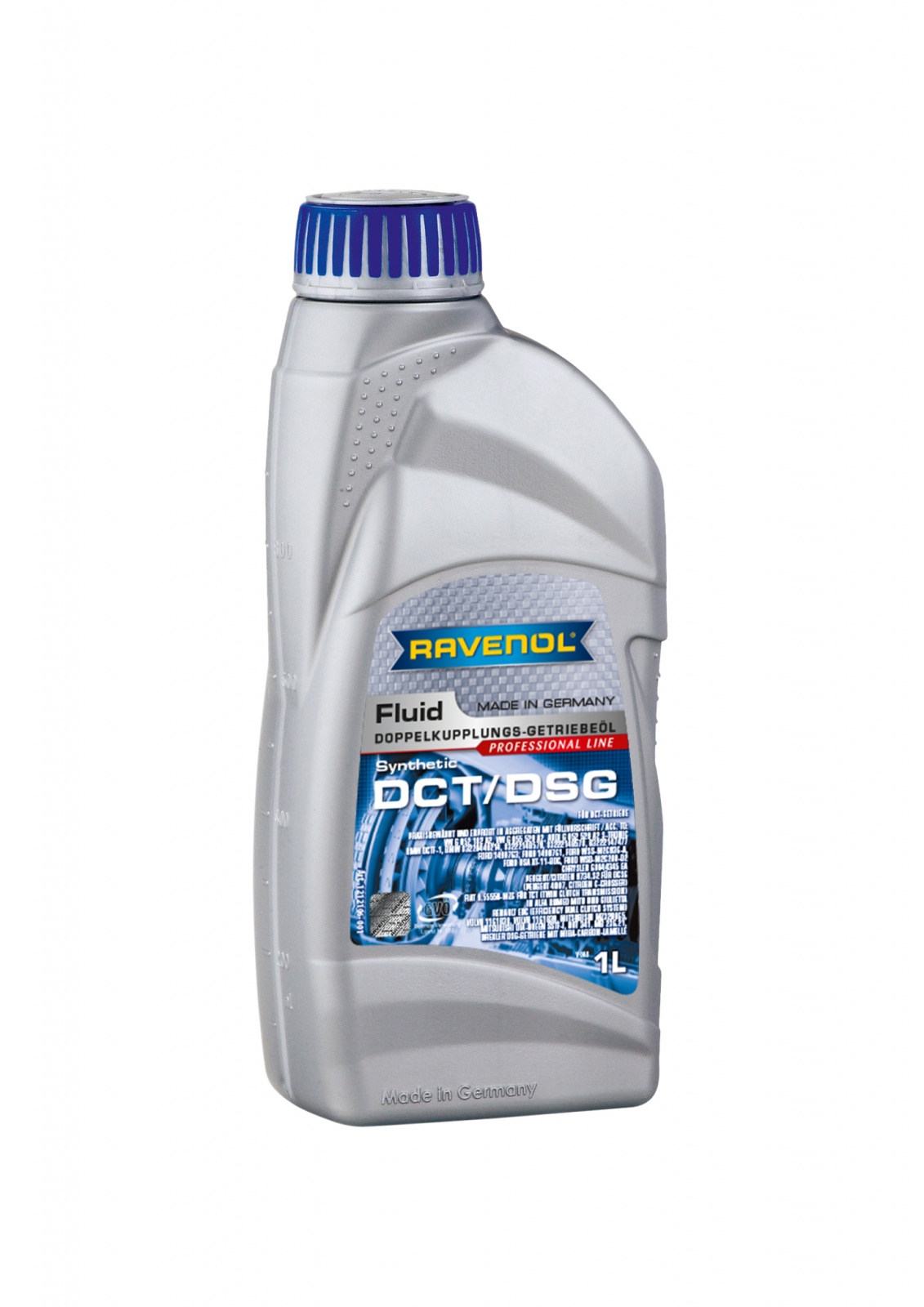

RAVENOL DCT/DSG Transmission Fluid

£14.45
(Inc. 20% VAT)
(£12.04 Exc. VAT)
Earn 14 Loyalty Points
(2 Reviews)
+
Reference
1212106-001-01-1JC4
Brand

Buy 4 or more of this product for a 7% discount

Information

RAVENOL DCT/DSG Transmission Fluid is formulated using the very latest synthetic technology, and designed specifically for use in Dual Clutch Transmissions (DCT) and Direct Shift Gearbox (DSG) applications. It allows virtually slip-free operation and thus minimal torque losses, whilst at the same time ensuring very low wear characteristics to prolong component life. Excellent lubricating properties extend throughout the extremes of high and low temperature ranges, and helps promote fuel efficiency.

Application

RAVENOL DCT/DSG Transmission Fluid has been developed especially for Dual Clutch Transmissions and Direct Shift Gearboxes of several manufacturers such as Volkswagen/ Audi, Ford, Volvo, Chrysler, Dodge, Mitsubishi, Fiat and Peugeot/Citroen. Recommended grade for use in Dual Clutch Gear DQ-250 (02E) and DQ-500 (0BT) acc. to VW Part-No. G 052 182 and DL-501 (0B5) acc. to Volkswagen Part-No. G 052 529 for Volkswagen, Audi, Seat and Skoda.

Before filling the gearbox it is advisable to first flush with RAVENOL DCT/DSG Transmission Fluid and then fill it up.

Meets/ Exceeds Requirements

  • Audi G052529 A2 S-Tronic
  • BMW 83220440214
  • BMW 83222147477
  • BMW 83222148578
  • BMW 83222148579
  • BMW 83222446673
  • BMW DCTF-1
  • BOT 341
  • Chrysler 68044345 EA
  • Citroën/Peugeot 9734.S2 for DCS6
  • Drexler DSG-Transmission with Miba-Carbon-Discs
  • DTFR 13C130 (MB 236.21)
  • FIAT 9.55550-MZ6 for TCT (Twin Clutch Transmission)
  • Ford 1490761
  • Ford 1490763
  • Ford USA XT-11-QDC
  • Ford WSD-M2C200-D2
  • Ford WSS-M2C936-A
  • MB 236.21
  • MITSUBISHI Dia-Queen SSTF-I
  • MITSUBISHI MZ320065
  • Renault EDC (Efficiency Dual Clutch System), VOLVO 1161838
  • VOLVO 1161839
  • VW G 052 182 A2
  • VW G 052 513
  • VW G 055 529 A2

Characteristics

RAVENOL DCT/DSG Transmission Fluid offers:

  • Good lubricating properties even at very low temperatures
  • Stable lubricant film even under extreme loads in hot climates
  • Exceptional low wear characteristics
  • Excellent viscosity-temperature behavior
  • Low foaming even under heavy demands
  • Extensive protection against corrosion and foaming
  • Compatible with all types of sealing materials
Data Sheets

Technical Product Data

Property Unit Data Audit
Density at 20 °C kg/m³ 840,0 EN ISO 12185
Colour   gelbbraun VISUELL
Viscosity at 100 °C mm²/s 7,4 DIN 51562-1
Viscosity at 40 °C mm²/s 35,1 DIN 51562-1
Viscosity Index VI   184 DIN ISO 2909
Pourpoint °C -51 DIN ISO 3016
Flashpoint °C 204 DIN EN ISO 2592



DOWNLOAD PDFSAFETY DATA SHEET

Please note that the technical data is correct at the time of writing, Ravenol are continuously updating product specifications. Therefore, please refer to the 'Download PDF' and 'Safety Data sheet' links above for up-to-date information.
