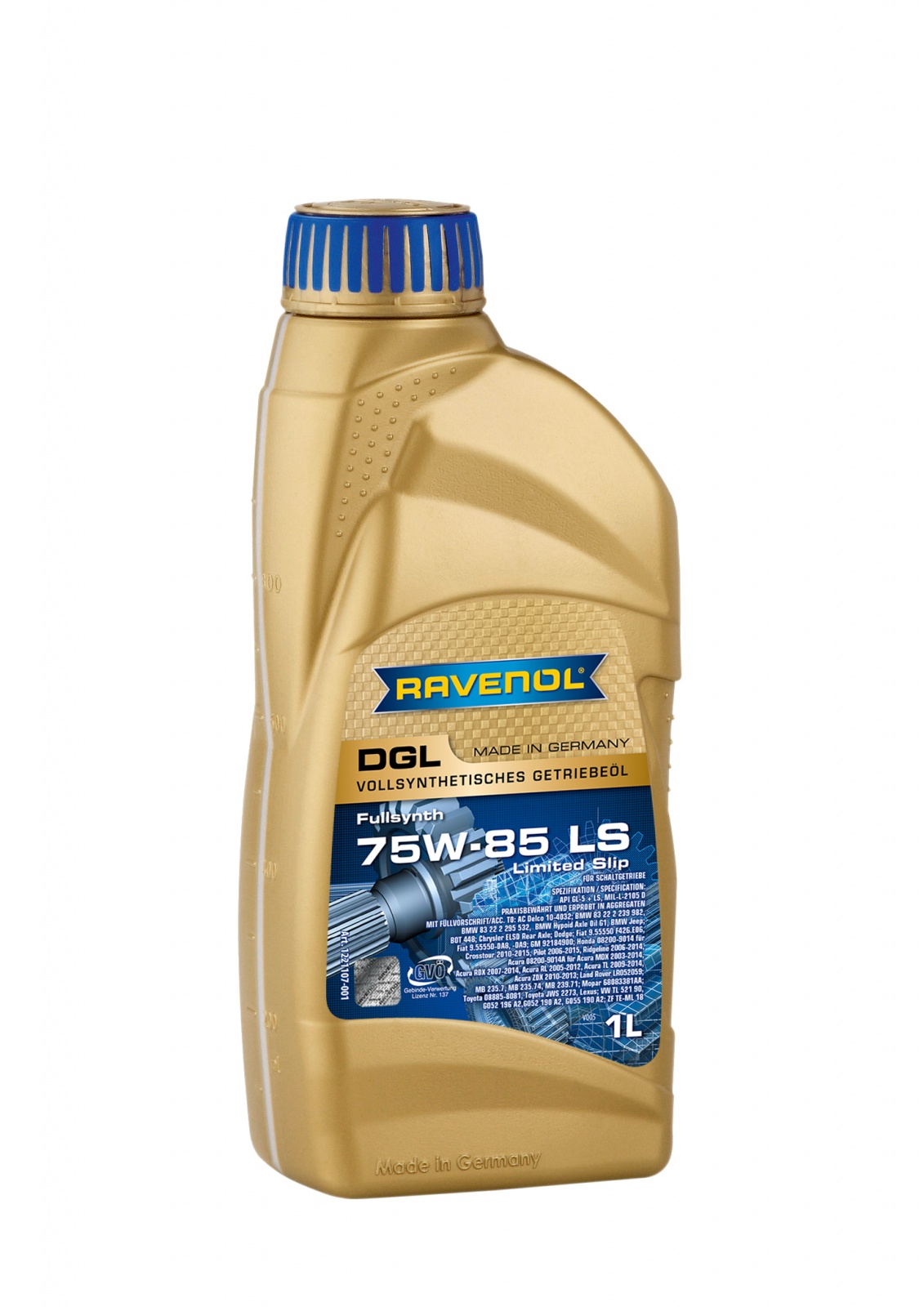

RAVENOL DGL 75W-85 GL-5 LS Transmission Fluid - 1 Litre

£17.95
(Inc. 20% VAT)
(£14.96 Exc. VAT)
Earn 17 Loyalty Points
(1 Review)
In stock for immediate delivery
+
Reference
1221107-001-01-2DA1
Brand
Information

RAVENOL DGL 75W-85 GL-5 LS Transmission Fluid is a fully synthetic multi-grade PAO based hypoid gear oil meeting API GL-5 specification with a specially co-ordinated additive treatment and “limited slip” properties for manual transmissions and rear-axles in motor vehicles. It has been developed to the meet increased loads of modern, high performance transmissions and is especially suited for applications requiring "limited slip" (LS) properties although it is also suitable for use in non-LS applications where this specification is recommended by the manufacturer. Its ability to cope with relatively high loads and operating temperatures is making it increasingly popular in various motorsport disciplines.

Specifications

  • API GL-5 + LS (Limited Slip)
  • MIL-L-2105 D

Meets/ Exceeds Requirements

  • AC Delco 10-4032
  • Acura 08200-9014A
  • BMW 83 22 2 239 982
  • BMW 83 22 2 295 532
  • BMW 83 22 2 413 511
  • BMW Hypoid Axle Oil G1
  • BMW Hypoid Axle Oil G2
  • BMW Jeep
  • BOT 448
  • Chrysler ELSD Rear Axle
  • Dodge
  • Fiat 9.55550 F426.E06
  • Fiat 9.55550-DA8
  • Fiat 9.55550-DA9
  • General Motors GM 92184900
  • Honda 08200-9014
  • Land Rover LR052059
  • Lexus
  • Mercedes Benz MB 235.7 A0019898303
  • Mercedes Benz MB 235.15 A0019895903
  • Mercedes Benz MB 235.74 A0019893303
  • Mercedes Benz MB 239.71 A0019898803
  • Mopar 68083381AA
  • Toyota 08885-8081
  • Toyota JWS 2273
  • Volkswagen VW TL 521 90
  • Volkswagen VW G052 190 A2
  • Volkswagen VW G052 196 A2
  • Volkswagen VW G055 190 A2
  • ZF TE-ML 18

Characteristic

RAVENOL DGL 75W-85 Transmission Fluid offers:

  • A high pressure stable lubricating film even at high oil temperatures and under high stress.
  • Outstanding shearing stability and excellent thermal stability.
  • Excellent viscosity-temperature properties.
  • High oxidation stability.
  • Excellent wear protection, outstanding EP properties.
  • Low foaming properties even at high speeds.
  • Good compatibility with non-ferrous metals and sealing materials.
  • Good shifting behaviour even in low temperatures, low pour point.
  • Extended life.
  • A stable lubricating film even at high oil temperatures and under high stress.
  • Well adhering lubricating film and outstanding LS additive treatment for reduced transmission noise even when oil is hot.





  •
Technical Data

Characteristics Unit Data Audit
Density at 20°C kg/m³ 862.0 EN ISO 12185
Colour   yellow brown visual
Viscosity at 100°C mm²/s 11.6 DIN 51562-10
Viscosity at 40°C mm²/s 64.3 DIN 51562-10
Viscosity index VI   1772 DIN ISO 2909
Brookfield Viscosity mPa*s 26,000 ASTM D2983
Pourpoint °C -51 DIN ISO 3016
Flash point (COC) °C 215 DIN ISO 2592
Foaming Behavior ml   ASTM D892
Copper Strip Test   1b ASTM D130

All indicated data are approximate values and are subject to commercial fluctuations.

Customer Reviews (1)
Write a Review and share your opinions!
1 Review:

MPG is up
Rating:
17 April 2023  |

Stuck DGL 75-85 in the transfer box and the rear diff and MTF-3 75W in the gearbox , now getting about 3mpg more from 42 to 45 and when the warm weather gets here this car will be nudging 50mpg.
Also got USVO DXG 5W-30 engine oil in the Suzuki vitara LY 1.4 turbo Allgrip.


Was this helpful to you?  Yes  /  No

Response:

Hi David,

Thank you for leaving such a positive review, we're delighted to hear that you're getting higher mpg efficiency figures. Hopefully you will see the fuel price savings overtime with the improved fuel economy.

- Ravenol Marketing
