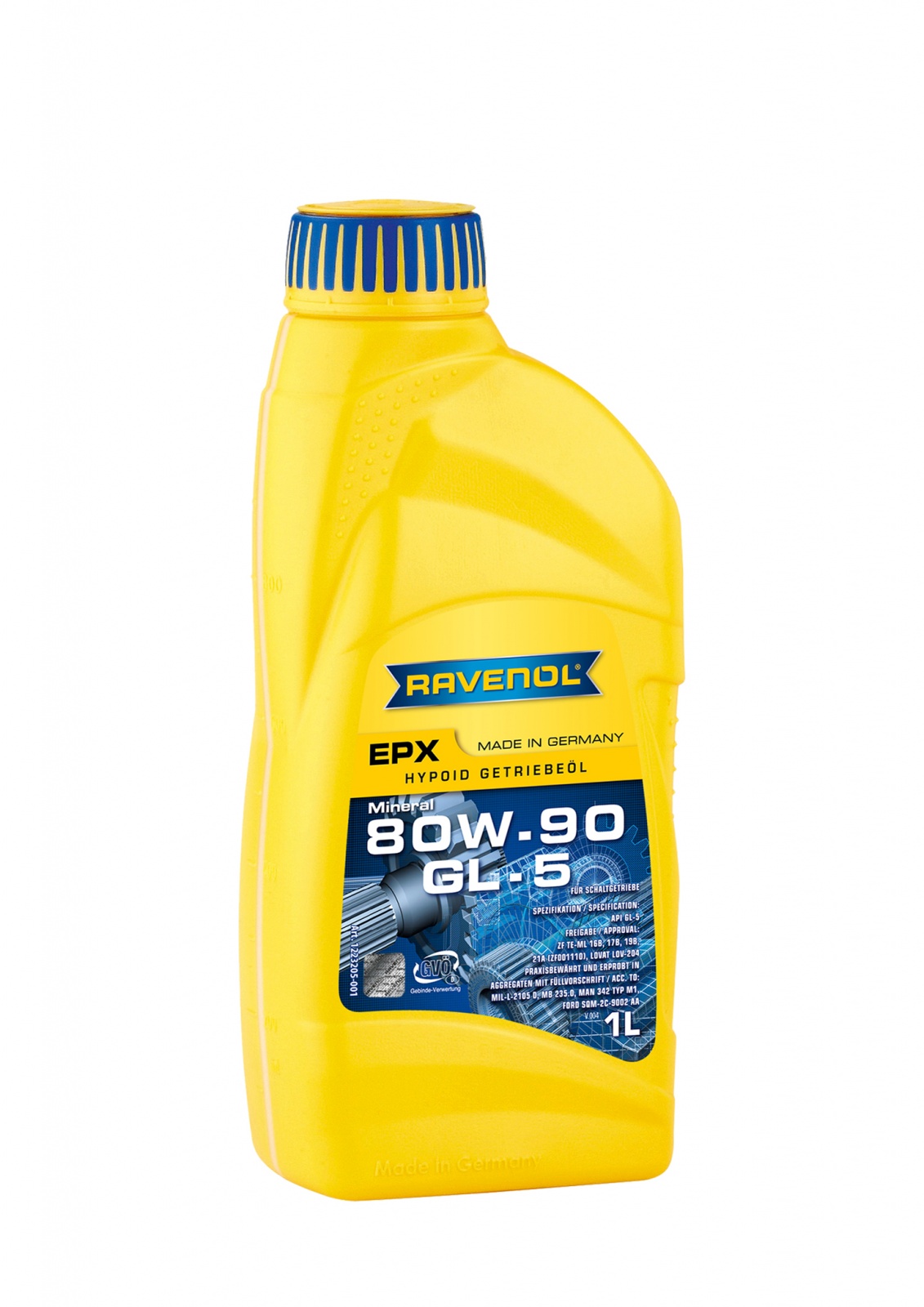

RAVENOL EPX 80W-90 Transmission Fluid

(Inc. 20% VAT)
(£8.71 Exc. VAT)
Earn 10 Loyalty Points
(3 Reviews)

Buy 4 or more of this product for a 7% discount


RAVENOL EPX 80W-90 Transmission Fluid is a multi-range gear oil for synchronised and non synchronised manual transmissions as well as axle drives, distributor transmissions, intermediate transmissions in vehicles and working machines. It has full OEM approval from ZF and Lovat.

In order to avoid the seasonal change of the transmission oil RAVENOL EPX 80W-90 Transmission Fluid was developed. It can be used in winter as well as in summer. Its universal use reduces the risk of mix-up and storage. Because of the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging are guaranteed.


RAVENOL EPX 80W-90 Transmission Fluid is compatible with all brand-name transmission oils. In case of changing flushing is not necessary. Can be used in manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.

  • API GL-5
OEM Approvals
  • ZF TE-ML 16B (ZF001110)
  • ZF TE-ML 19B (ZF001110)
  • ZF TE-ML 17B (ZF001110)
  • ZF TE-ML 21A (ZF001110)
  • LOVAT LOV-204
Meets/ Exceeds Requirements
  • MAN 342 Typ M1
  • Mercedes-Benz MB 235.0
  • FORD SQM-2C-9002 AA

RAVENOL EPX 80W-90 Transmission Fluid offers:

  • An optimum cold flow capacity
  • An excellent corrosion protection also regarding short distances in winter
  • Extreme pressure stability, therefore an excellent corrosion protection at all loads, reduced transmission
  • An excellent shear stability
  • A very good oxidation stability, no foam
  • No oil thickening power respectively deposits
  • An extremely high aging resistant
  • A very good viscosity temperature behaviour
  • An efficient corrosion protection
  • Protection against corrosion, sludge and sticking
  • An excellent corrosion protection, no rust, no attack of nonferrous metals
  • Neutral behaviour of sealing materials that means the transmissions stay closed, no oil loss
Data Sheets

Technical Product Data

Property Unit Data Audit
Density at 20 °C kg/m³ 879,0 EN ISO 12185
Colour   gelbbraun VISUELL
Viscosity at 100 °C mm²/s 14,0 DIN 51562-1
Viscosity at 40 °C mm²/s 126,9 DIN 51562-1
Viscosity Index VI   108 DIN ISO 2909
Brookfield Viscosity at -26 °C mPa*s 45.600 ASTM D2983
Pourpoint °C -33 DIN ISO 3016
Flashpoint °C 244 DIN EN ISO 2592
Copper Strip Test at 121 °C   1b ASTM D130

All indicated data are approximate values and are subject to the commercial fluctuations.


Please note that the technical data is correct at the time of writing, Ravenol are continuously updating product specifications. Therefore, please refer to the 'Download PDF' and 'Safety Data sheet' links above for up-to-date information.
