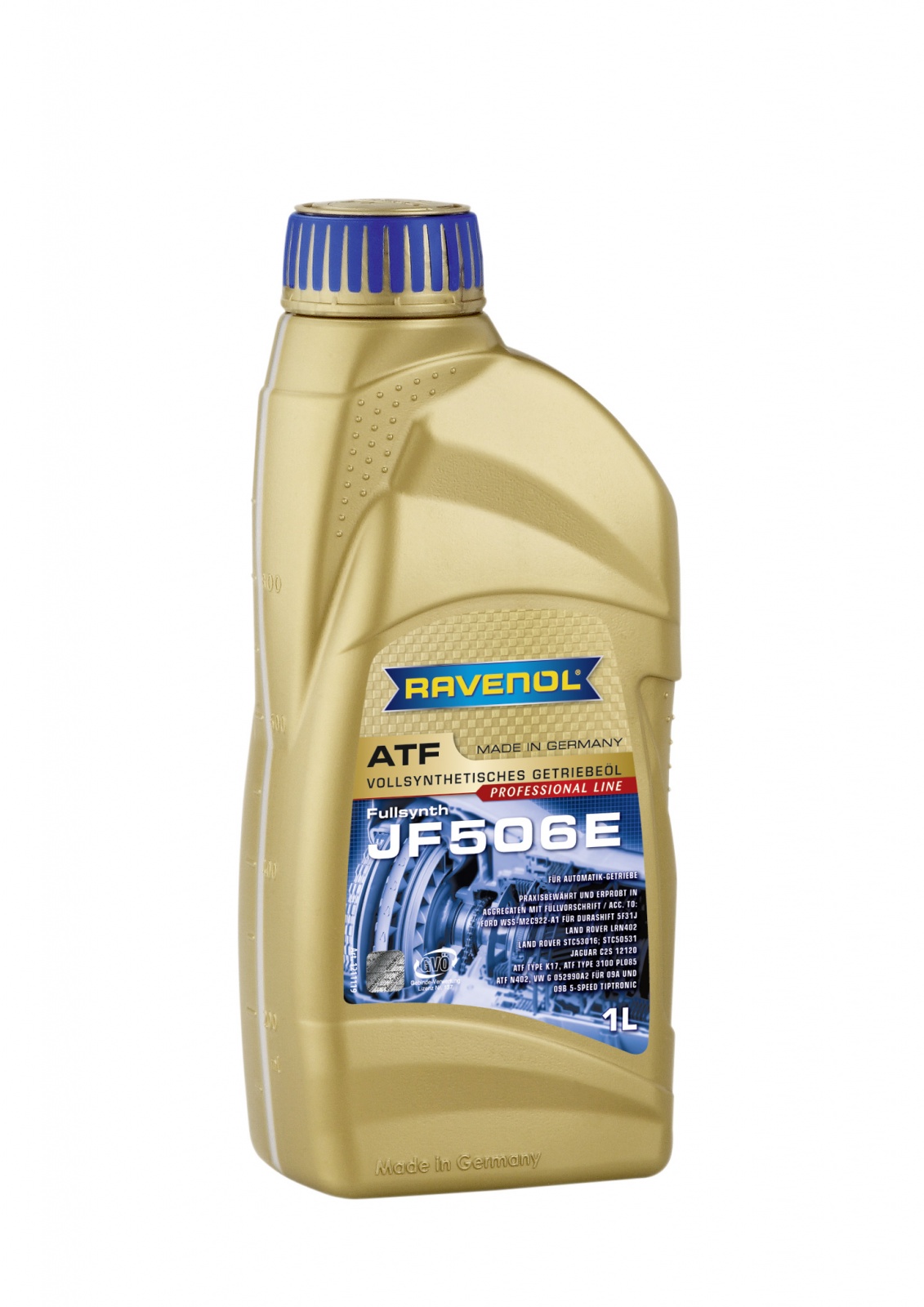

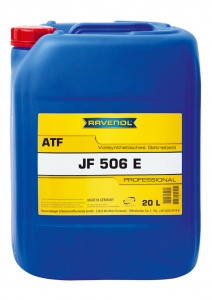

RAVENOL JF506E Transmission Fluid

(Inc. 20% VAT)
(£9.79 Exc. VAT)
Earn 11 Loyalty Points
(3 Reviews)

RAVENOL JF506E Transmission Fluid is automatic transmission fluid (ATF) for modern 5-speed automatic transmissions formulated with a special blend of synthetic PAO (Polyalphaolefins) base oils, additives and inhibitors to meet specific OEM requirements. RAVENOL JF506E Transmission Fluid is coloured red for easy identification.


RAVENOL JF506E Transmission Fluid is primarily designed for use in JATCO JF506E 5-speed automatic transmissions used in Ford Mondeo, Ford Galaxy, Land Rover Freelander, Rover 75, Volkswagen Bora, Volkswagen Sharan, Volkswagen Golf, Jaguar X-Type and Seat Alhambra vehicles.

Meets/ Exceeds Requirements

  • ATF N402
  • ATF Type K17
  • ATF Type 3100 PL085
  • Ford WSS-M2C922-A1 for Durashift 5F31J
  • Jaguar C2S 12120
  • Land Rover LRN402
  • Land Rover STC50531
  • Land Rover STC53016
  • VW G052990 A2 (09A & 09B 5-Speed Tiptronic)


RAVENOL JF506E Transmission Fluid offers:

  • Excellent performance even at very low temperatures
  • High, stable viscosity index
  • Very good oxidation stability
  • Excellent protection against corrosion and foam formation
  • Good balanced coefficient of friction
  • Exceptionally high thermal stability
  • Excellent cooling capabilities
Technical Data

Characteristics Unit Data Audit
Density at 20°C kg/m³ 847.0 EN ISO 12185
Colour   red visual
Pourpoint °C -51 DIN ISO 3016

All indicated data are approximate values and are subject to commercial fluctuations.
