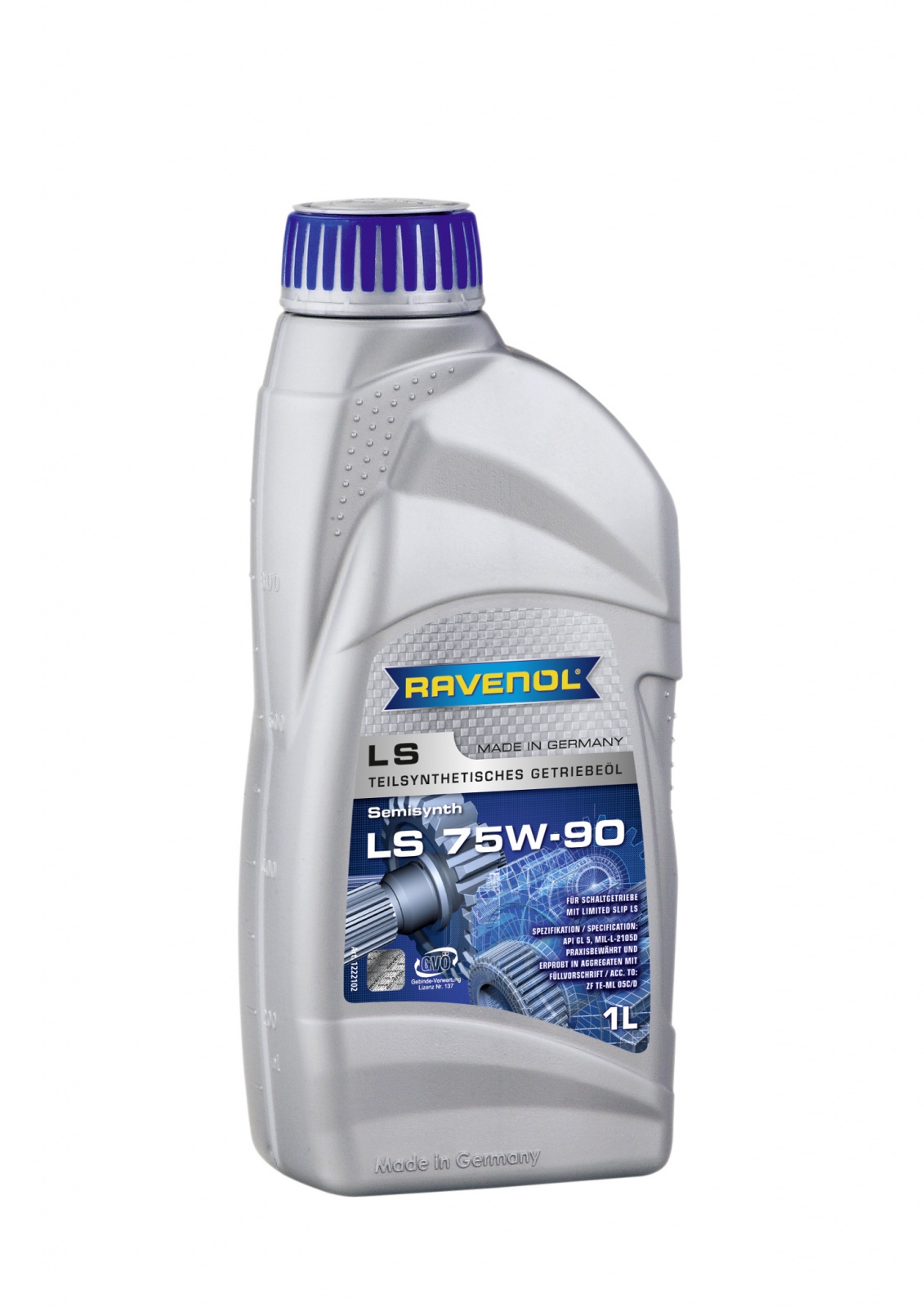

RAVENOL LS75W-90 Transmission Fluid is a semi synthetic Limited Slip Differential oil especially suitable for Historic Motorsport applications where an SAE 90 grade oil was originally specified. Can also be used in non-synchro (dog gearbox) and sequential gearboxes. Please note, it is not suitable for synchromesh or overdrive boxes. The formulation is based on a blend of high quality solvent refined and synthetic base oils, together with special additives and inhibitors, which are adapted to ensure proper operation of the transmission.
Application
RAVENOL LS 75W-90 Transmission Fluid was specially developed for use in differentials with limited slip (LS) properties. Proper lubrication is assured in self-locking, hypoid transmissions, and the cost-effective formulation makes it suitable for a wide range of applications, including high performance transmissions where this type of oil is specified.
Specification
Meets/ Exceeds Requirements
- MIL-L-2105D,
- GM 1940058
- GM 88862624
- GM 88862625
- GM 93165388
- SAAB 9-3 08-2012 XWD
- ZF TE-ML 05C
- ZF TE-ML 05D
Characteristics
RAVENOL LS 75W-90 Transmission Fluid offers:
- High oxidation stability
- Very high levels of corrosion protection
- Exceptional shear stability, excellent EP characteristics
- Excellent Limited Slip properties
- Compatible with non-ferrous components
- Formulation ensures high levels of foam prevention
| Characteristics | Unit | Data | Audit |
| Density at 20°C | kg/m³ | 870.0 | EN ISO 12185 |
| Colour | | yellow | visual |
| Viscosity at 100°C | mm²/s | 17.1 | DIN 51562-10 |
| Viscosity at 40°C | mm²/s | 118.3 | DIN 51562-10 |
| Viscosity index VI | | 158 | DIN ISO 2909 |
| Brookfield Viscosity at -40°C | mPa*s | 88,000 | ASTM D 2983 |
| Pourpoint | °C | -42 | DIN ISO 3016 |
| Flash point (COC) | °C | 192 | DIN ISO 2592 |
| Copper Strip Test | | 1b | ASTM D130 |
All indicated data are approximate values and are subject to commercial fluctuations.
