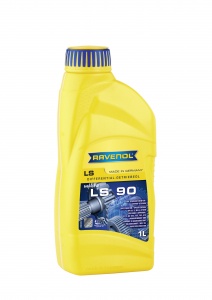

RAVENOL LS 90 Transmission Fluid

RAVENOL LS 90 Transmission Fluid
  Zoom
 Size: 1 litreSize: 20 litres
:  Subject to availability a discount of 7% is given when you order 4 (based on a single size) items or more of this product.
Choose your options
RAVENOL-Direct Price:  £10.95(Inc. 20% VAT)(£9.13 Exc. VAT)Earn 10 Loyalty Points

Availability:

In stock for immediate delivery
+

Reference:  1223302-001-01-999
Brand:  RAVENOL RACING
OEM Approvals:  ZF

RAVENOL LS 90 Mineral  Transmission Fluid is a mineral hypoid transmission oil formulated for use where Limited Slip capabilities are required and meets the extremely stringent requirements for many differential gears and locking differentials. It has full OEM approval from ZF. It provides effective wear protection for offset hypoid gearing, even under severe operating conditions, and is also suitable for use in Historic Motorsport.

Application

RAVENOL LS 90 Mineral Transmission Fluid is specially developed as a high quality, cost-effective lubricant for use in all Limited Slip differentials which require this grade of lubricant. Approved by ZF transmissions for use where specified below.

Specification

  • API GL 5, MIL-L-2105 D

OEM Approvals

  • ZF TE-ML 05C (ZF001851)
  • ZF TE-ML 12C (ZF001851)
  • ZF TE-ML 16E (ZF001851)
  • ZF TE-ML 21C (ZF001851)

Meets/ Exceeds Requirements

  • Ford

Characteristics

RAVENOL LS 90 Mineral Transmission Fluid offers:

  • Extremely high load carrying capacity
  • Excellent wear protection
  • Wide ranging Limited Slip capabilities
  • Excellent resistance to ageing
  • High oxidation resistance even under high thermal stress
  • Low foaming tendency even at high speeds/loads
  • Compatible with all types of sealing materials and all non-ferrous metal components
  • Excellent viscosity-temperature behaviour
Characteristics Unit Data Audit
Density at 20°C kg/m³ 8890 EN ISO 12185
Colour   yellow brown visual
Viscosity at 100°C mm²/s 17.6 DIN 51562-10
Viscosity at 40°C mm²/s 177.3 DIN 51562-10
Viscosity index VI   108 DIN ISO 2909
Brookfield Viscosity mPa*s 12,400 ASTM D 2983
Pourpoint °C -30 DIN ISO 3016
Flash point (COC) °C 214 DIN ISO 2592
Copper Strip Test   1b ASTM D130

All indicated data are approximate values and are subject to commercial fluctuations.
