Information

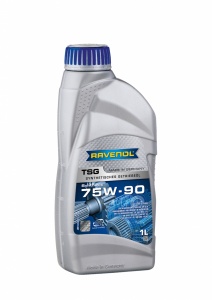

RAVENOL TSG 75W-90 Transmission Fluid is a semi synthetic multigrade transmission oil for modern highly-loaded manual transmissions. It is formulated with a blend of high quality synthetic and mineral base oils, together with special additives and inhibitors to ensure perfect function of the transmission. Used as a budget racing transmission oil by many clubmen.

Application

RAVENOL TSG 75W-90 Transmission Fluid is suitable for highly stressed manual transmissions (with and without synchromesh), transfer cases and steering gearboxes in vehicles and machines.

Specification:

  • API GL-4

Recommended:

  • Ford M2C-175
  • Opel/GM B0401043
  • VW 501 50
  • VW G052911 A2
  • VW G060 726 A2

Characteristics:

RAVENOL TSG  75W-90 Transmission Fluid offers:

  • excellent aging resistance
  • extra high pressure absorption properties
  • optimal viscosity-temperature properties
  • excellent low temperature properties
  • shearing stability
  • stable lubricating film even under high stress
  • extremely low pour point
  • good elastomer compatibility to prevent leaks
Data Sheets

Technical Product Data

Property Unit Data Audit
Density at 20 °C kg/m³ 862,0 EN ISO 12185
Colour   gelbbraun VISUELL
Viscosity at 100 °C mm²/s 16,5 DIN 51562-1
Viscosity at 40 °C mm²/s 111,7 DIN 51562-1
Viscosity Index VI   160 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 99.700 ASTM D2983
Pourpoint °C -48 DIN ISO 3016
Copper Strip Test at 121 °C   1b ASTM D130

All indicated data are approximate values and are subject to the commercial fluctuations.

DOWNLOAD PDFSAFETY DATA SHEET

Please note that the technical data is correct at the time of writing, Ravenol are continuously updating product specifications. Therefore, please refer to the 'Download PDF' and 'Safety Data sheet' links above for up-to-date information.
