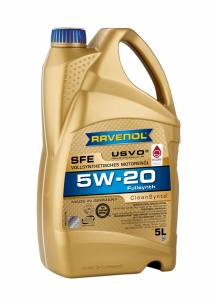

RAVENOL USVO® SFE 5W-20 Engine Oil is a PAO (Polyalphaolefin) based, fully synthetic low friction motor oil specially formulated using RAVENOL's unique USVO and CleanSynto technologies. It has full OEM approval from Jaguar Land Rover, and is recommended for passenger car petrol and diesel engines with and without turbo-charging and direct injection. It has been developed to provide both improved low emission performance and fuel economy under all driving conditions.
RAVENOL USVO SFE 5W-20 Engine Oil formulation offers excellent cold start behaviour and ensures optimal lubrication in the cold running phase. Due to a significant fuel economy capability, it contributes to conservation of the environment by reduction of emissions. Minimal wear extends the lifespan of the engine.
Application
RAVENOL USVO SFE 5W-20 Engine Oil is suitable for all petrol and diesel engines requiring a 5W-20 grade Fuel Economy engine oil, and is especially developed to meet the requirements of the latest generation of Jaguar and Land Rover vehicles fitted with 5.0L V8 units.
Specifications:
- API SN Plus
- API SP (RC)
- ILSAC GF-6A
- ACEA A5/B5
OEM Approvals:
- Jaguar Land Rover STJLR.03.5004
- Ford WSS-M2C948-B
- ILSAC GF-6A
Meets/ Exceeds Requirements:
- Ford WSS-M2C925-A
- Ford WSS-M2C925-B
- Ford WSS-M2C930-B
- Chrysler MS-6395
- Honda/ Acura HTO-6
- Nissan
- Mazda
- Suzuki
- Toyota
- Fiat 9.55535-CR1
Characteristics:
RAVENOL USVO SFE 5W-20 Engine Oil offers:
- Enhanced fuel economy in part load and full power operation
- Excellent wear protection and high viscosity index protect even under the harshest driving conditions
- Exceptional cold starting characteristics at low temperatures below -25°C
- A safe lubricant film at high operating temperatures
- Low evaporative tendency, so lower oil consumption
- No deposits in combustion chambers, in the piston ring zone and valves due to superb detergent and dispersant additive package
- Neutrality towards sealing materials
- Extended oil change capability to protect natural resources
| Characteristics | Unit | Data | Audit |
| Density at 20°C | kg/m³ | 842.0 | EN ISO 12185 |
| Colour | | YELLOW - BROWN | visual |
| Viscosity at 100°C | mm²/s | 8.5 | DIN 51 562 |
| Viscosity at 40°C | mm²/s | 47.2 | DIN 51 562 |
| Viscosity index VI | | 160 | DIN ISO 2909 |
| HTHS at 150°C | mPа*s | 2.9 | CEC L-036-90 |
| CCS Viscosity at -30°C | mPa*s | 3640 | ASTM D5293 |
| Low Temp. Pumping viscosity (MRV) at -35°C | mPa*s | 9,700 | ASTM D4684 |
| Pourpoint | °C | -63 | DIN ISO 3016 |
| Noack Volatility | % | 8.3 | ASTM D5800/b |
| Flash point | °C | 238 | DIN ISO 2592 |
| TBN | mg KOH/g | 8.0 | ASTM D2896 |
| Sulphated ash | %wt. | 0.8 | DIN 51 575 |
All indicated data are approximate values and are subject to commercial fluctuations.
Ravenol has made it their mission to master the technological challenges of the future of lubricants and have therefore developed the ultimate in automotive lubrication technology......USVO®
What is USVO® technology?
Lubricant requirements for modern vehicles are becoming increasingly demanding, with unwanted changes in viscosity quickly causing serious problems. To counter this, Ravenol has developed the USVO® lubricant technology to provide a very high viscosity stability at both high and low temperatures. To achieve this only the highest quality fully synthetic base oils and additives are used. USVO® stands for Ultra Strong Viscosity Oil.
THANKS TO THE IDEAL COMBINATION OF COMPONENTS, RAVENOL HAS CREATED FORMULATIONS WITH THE FOLLOWING BENEFITS:
• EXCELLENT HIGH TEMPERATURE VISCOSITY (HTHS AT 150 °C)Barely any viscosity loss during operation, which means that the lubricant film is permanently maintained during operation.
• EXCELLENT PERFORMANCE AT LOW TEMPERATURES (CCS AT -30 °C)The lubricant is always flows freely so that direct engine lubrication is guaranteed even for cold starts.
• VERY GOOD OXIDATION STABILITYOxidation stable lubricants have increased resistance against reacting with oxygen and temperatures. This increases the lubricant service life, which permanently prevents deposits (sludge) and maintains the lubrication properties.
• VERY LOW LOSSES DUE TO EVAPORATIONOnly a few components of the oil evaporate at the high operating temperatures. As a result, the engine oil level drops only slightly and the environment is not additionally polluted by the gases.
• HIGH VISCOSITY INDEXA high viscosity index illustrates a reduced temperature-dependent viscosity change compared to a low viscosity index.
• VERY LOW POUR POINTThe pour point is the lowest temperature above which an oil is liquid. As a result, lubrication is guaranteed, even at the lowest temperatures. Even if we never get temperatures this low in the UK, the lower the pour point, the better the quality of the lubricant.
| Properties of the RAVENOL-USVO® qualities
Thanks to their technical properties, RAVENOL USVO® lubricants optimise engine performance and noticeably reduce fuel consumption at the same time. This benefits the environment, as lower fuel consumption leads to reduced CO2 emissions.
CCS = Low temperature viscosity PP = Temperature of loss of fluidity MRV = Low temperature viscosity when pumping through SSI = Mechanical shear strength

Further detailed information over RAVENOL USVO® Technology can be found HERE. | |
