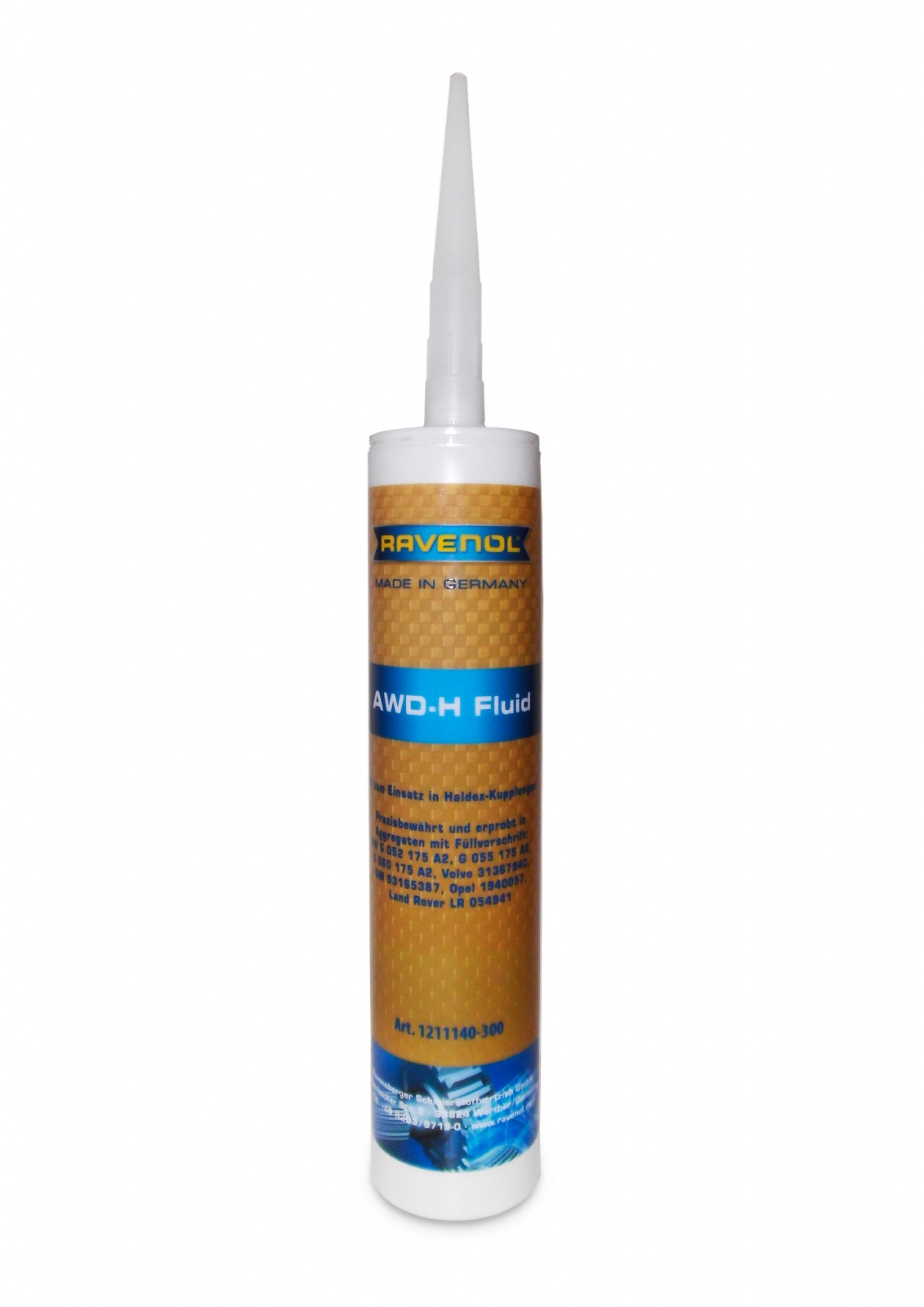

RAVENOL AWD-H Haldex Fluid

  (3 Reviews)
RAVENOL AWD-H Haldex Fluid
  Zoom
 Size: 300 mlSize: 1 litre
:  Subject to availability a discount of 7% is given when you order 4 (based on a single size) items or more of this product.
Choose your options
RAVENOL-Direct Price:  £13.99(Inc. 20% VAT)(£11.66 Exc. VAT)Earn 13 Loyalty Points

Availability:

In stock for immediate delivery
+

Reference:  1211140-300-05-999
Brand:  RAVENOL
Made in Germany:  Liquid Engineering at its best!

RAVENOL AWD-H Haldex Fluid is a special high-performance product engineered for use in Haldex's Allrad, Quattro and 4motion powertrains and is specially engineered for use with all-wheel drive powertrains with Haldex couplings, such as those in in Audi, Volkswagen, Seat, Skoda, Vauxhall, Land Rover and Volvo vehicles.

The lower the dynamic viscosity, the better. The Haldex clutch will begin to work faster, the oil will circulate more quickly and there is no wear caused by a low temperature start. With regard to the parameters for dynamic viscosity at minus 40 °C, RAVENOL AWD-H Fluid delivers 270,63% higher performance than the original oil VW G 060 175 A2

​​​​​​How the Hadlex Coupling operates:

The Haldex Coupling is a very sophisticated piece of engineering and it needs to be looked after with regular Haldex oil changes. The axle closest to the engine is constantly powered. All-wheel drive powertrains with a Haldex coupling automatically direct engine power to the other axle where required, without any intervention from the driver. The Haldex coupling, a separate component to the rear final drive, but directly attached to it,  is a submerged, multi-plate, wet clutch system that engages upon slip and transfers power to the rear final drive. The system is computer controlled with very fine engineering tolerances. If the Haldex oil is dirty, it can damage other components and affect performance. Dirty Haldex oil can overheat the coupling or cause the clutches to burn out. It can also burn out the Haldex Pump and will lead to loss of rear drive and eventual failure. You can learn more about the Haldex AWD system and how it works on our blog. Here is also a very interesting feature by one of our customers: Eco-Torque Ltd.

So how does the RAVENOL Haldex Fluid compare? Test results HERE or download PDF.

Application

RAVENOL AWD-H Haldex Fluid is suitable for use with all-wheel drive powertrains with Haldex couplings, such as those in Audi, Volkswagen, Seat, Skoda, Vauxhall/ Opel, Land Rover and Volvo vehicles. The Haldex oil should be changed every 37,500 miles in order to avoid damage to the powertrain. Further information and a list of vehicle applications can be found HERE.  Please be aware that as the opening on the coupling may be different sizes on different vehicles, you may need to trim the nozzle down in order to get a tight fit when using the 300ml size.

Meets/ Exceeds RequirementsVolkswagen VW G 052 175 A2

  • Volkswagen VW G 055 175 A2
  • Volkswagen VW G 060 175 A2
  • Volvo 31367940
  • Opel 19 40 057
  • Land Rover LR 054941
  • Land Rover LR 003136 (Haldex-Oil Year 2011-2014)

 Characteristics

RAVENOL AWD-H Haldex Fluid offers:

  • An excellent flow behaviour at low temperatures
  • High, stable viscosity index
  • Very good oxidation stability
  • Reliable protection against wear, corrosion and foaming
  • Excellent coefficient of friction constancy
  • High thermal and oxidative stability
  • Excellent cooling ability
  • Improved shear stability
Characteristics Unit Data Audit
Density at 20°C kg/m³ 855.0 EN ISO 12185
Colour   yellow visual
Pourpoint °C -63

DIN ISO 3016

All indicated data are approximate values and are subject to commercial fluctuations.
